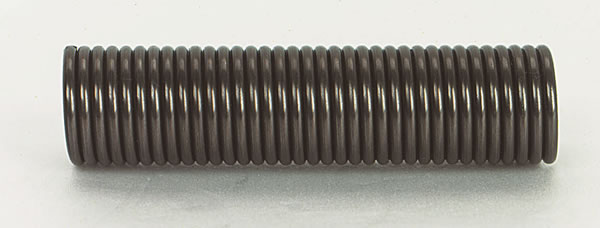

密着スプリング フリーサイズ ピアノ線

材質
SWP-A
巻方向
表面処理
防錆油
外径
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 20
  • 22
  • 25
  • 28
  • 32
  • 36
  • 40
  • 50
納期
1~20個/2日後発送
21~49個/3日後発送
50個以上の場合はあらためて納期のご連絡を差し上げます

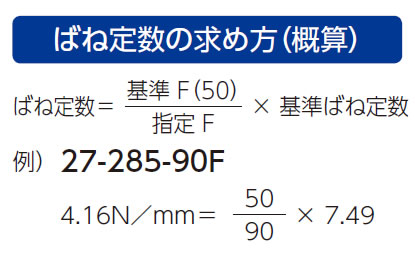

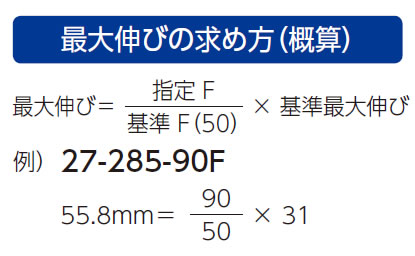

ばね定数の求め方(概算) 最大伸びの求め方(概算)
この製品は受注生産品のため、注文後のキャンセルはご容赦ください

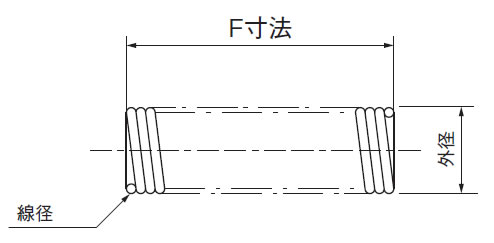

※F寸法が50mm時の値
※最大荷重及び初張力は長さにとらわれず一定です

製品番号 外径 線径 最大荷重 最大伸び
mm
初張力
N
ばね定数
N/mm
注文数別単価(円)
N(kgf)
27-033 3 0.3 2.37 0.24 87 0.18 0.03
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm500420350240170153136117103
21~50mm630520430300210189168144127
51~100mm710590490340245221196169149
101~150mm780650550390280252224193170
151~200mm900750650450330297264227200
201~250mm1,050870750530385347308265233
251~300mm1,100940820580440396352303267
受注生産品
F寸mm
27-034 3 0.4 5.32 0.54 41 0.53 0.12
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm500420350240170153136117103
21~50mm630520430300210189168144127
51~100mm710590490340245221196169149
101~150mm780650550390280252224193170
151~200mm900750650450330297264227200
201~250mm1,050870750530385347308265233
251~300mm1,100940820580440396352303267
受注生産品
F寸mm
27-043 4 0.4 4.08 0.42 85 0.31 0.04
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm500420350240170153136117103
21~50mm630520430300210189168144127
51~100mm710590490340245221196169149
101~150mm780650550390280252224193170
151~200mm900750650450330297264227200
201~250mm1,050870750530385347308265233
251~300mm1,100940820580440396352303267
受注生産品
F寸mm
27-044 4 0.5 7.66 0.78 47 0.77 0.15
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm500420350240170153136117103
21~50mm630520430300210189168144127
51~100mm710590490340245221196169149
101~150mm780650550390280252224193170
151~200mm900750650450330297264227200
201~250mm1,050870750530385347308265233
251~300mm1,100940820580440396352303267
受注生産品
F寸mm
27-053 5 0.5 6.22 0.63 84 0.49 0.07
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm500420350240170153136117103
21~50mm630520430300210189168144127
51~100mm740620520360255230204175154
101~200mm970810700485360324288248218
201~300mm1,2001,020890630480432384330290
301~450mm1,4001,1701,030745595536476409360
451~600mm1,8001,5501,350990790711632544479
受注生産品
F寸mm
27-054 5 0.6 10.1 1.03 49 1.01 0.18
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm500420350240170153136117103
21~50mm630520430300210189168144127
51~100mm740620520360255230204175154
101~200mm970810700485360324288248218
201~300mm1,2001,020890630480432384330290
301~450mm1,4001,1701,030745595536476409360
451~600mm1,8001,5501,350990790711632544479
受注生産品
F寸mm
27-063 6 0.6 8.55 0.87 79 0.71 0.1
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm500420350240170153136117103
21~50mm630520430300210189168144127
51~100mm740620520360255230204175154
101~200mm1,050870750530385347308265233
201~300mm1,3001,100960680520468416358315
301~450mm1,5001,2501,100800640576512440387
451~600mm1,9001,5501,3501,040840756672578509
受注生産品
F寸mm
27-065 6 0.8 18.9 1.93 35 2.13 0.47
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm500420350240170153136117103
21~50mm630520430300210189168144127
51~100mm740620520360255230204175154
101~200mm1,050870750530385347308265233
201~300mm1,3001,100960680520468416358315
301~450mm1,5001,2501,100800640576512440387
451~600mm1,9001,5501,3501,040840756672578509
受注生産品
F寸mm
27-073 7 0.7 10.3 1.05 70 0.96 0.13
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm500420350240170153136117103
21~50mm630520430300210189168144127
51~100mm740620520360255230204175154
101~200mm1,050870750530385347308265233
201~300mm1,3001,100960680520468416358315
301~450mm1,5001,2501,100800640576512440387
451~600mm1,9001,5501,3501,040840756672578509
受注生産品
F寸mm
27-075 7 0.9 21.2 2.16 35 2.94 0.52
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm550460380260180162144124109
21~50mm660550460325230207184158139
51~100mm780650550390280252224193170
101~200mm1,050870750530410369328282248
201~300mm1,4001,1601,020730560504448385339
301~450mm1,6001,3501,190865690621552475418
451~600mm2,0001,6501,4401,120900810720619545
受注生産品
F寸mm
27-083 8 0.8 14.5 1.48 74 1.26 0.18
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm500420350240170153136117103
21~50mm630520430300210189168144127
51~100mm740620520360255230204175154
101~200mm1,050870750530385347308265233
201~300mm1,3001,100960680520468416358315
301~450mm1,5001,2501,100800640576512440387
451~600mm1,9001,5501,3501,040840756672578509
受注生産品
F寸mm
27-085 8 1.0 27 2.75 41 3.04 0.58
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm550460380260180162144124109
21~50mm660550460325230207184158139
51~100mm780650550390280252224193170
101~200mm1,050870750530410369328282248
201~300mm1,4001,1601,020730560504448385339
301~450mm1,6001,3501,190865690621552475418
451~600mm2,0001,6501,4401,120900810720619545
受注生産品
F寸mm
27-094 9 1.0 24.4 2.49 56 2.45 0.39
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm550460380260180162144124109
21~50mm660550460325230207184158139
51~100mm780650550390280252224193170
101~200mm1,050870750530410369328282248
201~300mm1,4001,1601,020730560504448385339
301~450mm1,6001,3501,190865690621552475418
451~600mm2,0001,6501,4401,120900810720619545
受注生産品
F寸mm
27-095 9 1.2 39.2 4.00 33 4.41 1.05
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm590490400280195176156134118
21~50mm710590490340245221196169149
51~100mm780650550390280252224193170
101~200mm1,100940820580440396352303267
201~300mm1,4001,1701,030745595536476409360
301~450mm1,7001,4501,280930740666592509448
451~600mm2,2001,8001,5601,210975877780671590
受注生産品
F寸mm
27-103 10 1.0 22.1 2.25 74 1.96 0.27
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm590490400280195176156134118
21~50mm710590490340245221196169149
51~100mm780650550390280252224193170
101~200mm1,100940820580440396352303267
201~300mm1,4001,1701,030745595536476409360
301~450mm1,7001,4501,280930740666592509448
451~600mm2,2001,8001,5601,210975877780671590
受注生産品
F寸mm
27-104 10 1.2 36.5 3.72 44 4.31 0.73
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm630520430300210189168144127
21~50mm710590490340245221196169149
51~100mm900750650450330297264227200
101~200mm1,2001,020890630480432384330290
201~300mm1,5001,2501,100800640576512440387
301~450mm1,8001,5501,350990790711632544479
451~600mm2,3001,9501,6801,3001,050945840722635
受注生産品
F寸mm
27-105 10 1.4 56.2 5.73 29 7.64 1.7
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm630520430300210189168144127
21~50mm710590490340245221196169149
51~100mm900750650450330297264227200
101~200mm1,2001,020890630480432384330290
201~300mm1,5001,2501,100800640576512440387
301~450mm1,8001,5501,350990790711632544479
451~600mm2,3001,9501,6801,3001,050945840722635
受注生産品
F寸mm
27-113 11 1.0 17.3 1.77 80 1.45 0.2
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm660550460325230207184158139
21~50mm740620520360255230204175154
51~100mm970810700485360324288248218
101~200mm1,3001,100960680520468416358315
201~300mm1,7001,4501,280930740666592509448
301~450mm1,9001,5501,3501,040840756672578509
451~600mm2,4002,0001,7501,4101,1401,026912784690
受注生産品
F寸mm
27-114 11 1.2 27.8 2.84 46 3.24 0.53
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm660550460325230207184158139
21~50mm740620520360255230204175154
51~100mm970810700485360324288248218
101~200mm1,3001,100960680520468416358315
201~300mm1,7001,4501,280930740666592509448
301~450mm1,9001,5501,3501,040840756672578509
451~600mm2,4002,0001,7501,4101,1401,026912784690
受注生産品
F寸mm
27-115 11 1.4 44.7 4.56 31 6.39 1.24
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm710590490340245221196169149
21~50mm780650550390280252224193170
51~100mm1,050870750530385347308265233
101~200mm1,4001,1601,020730560504448385339
201~300mm1,8001,5501,350990790711632544479
301~450mm2,0001,6501,4401,120900810720619545
451~600mm2,5002,1001,8001,4701,2001,080960826727
受注生産品
F寸mm
27-122 12 1.0 18.5 1.89 116 1.18 0.15
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm660550460325230207184158139
21~50mm740620520360255230204175154
51~100mm970810700485360324288248218
101~200mm1,3001,100960680520468416358315
201~300mm1,7001,4501,280930740666592509448
301~450mm1,9001,5501,3501,040840756672578509
451~600mm2,4002,0001,7501,4101,1401,026912784690
受注生産品
F寸mm
27-123 12 1.2 30.7 3.13 71 2.84 0.39
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm660550460325230207184158139
21~50mm740620520360255230204175154
51~100mm970810700485360324288248218
101~200mm1,3001,100960680520468416358315
201~300mm1,7001,4501,280930740666592509448
301~450mm1,9001,5501,3501,040840756672578509
451~600mm2,4002,0001,7501,4101,1401,026912784690
受注生産品
F寸mm
27-124 12 1.4 47.5 4.84 46 5.39 0.91
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm710590490340245221196169149
21~50mm780650550390280252224193170
51~100mm1,050870750530385347308265233
101~200mm1,4001,1601,020730560504448385339
201~300mm1,8001,5501,350990790711632544479
301~450mm2,0001,6501,4401,120900810720619545
451~600mm2,5002,1001,8001,4701,2001,080960826727
受注生産品
F寸mm
27-125 12 1.6 67.7 6.90 31 8.72 1.88
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm710590490340245221196169149
21~50mm780650550390280252224193170
51~100mm1,050870750530385347308265233
101~200mm1,4001,1601,020730560504448385339
201~300mm1,8001,5501,350990790711632544479
301~450mm2,0001,6501,4401,120900810720619545
451~600mm2,5002,1001,8001,4701,2001,080960826727
受注生産品
F寸mm
27-132 13 1.0 14.7 1.5 120 0.93 0.11
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm660550460325230207184158139
21~50mm740620520360255230204175154
51~100mm970810700485360324288248218
101~200mm1,3001,100960680520468416358315
201~300mm1,7001,4501,280930740666592509448
301~450mm1,9001,5501,3501,040840756672578509
451~600mm2,4002,0001,7501,4101,1401,026912784690
受注生産品
F寸mm
27-133 13 1.2 24.2 2.47 72 2.17 0.31
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm710590490340245221196169149
21~50mm780650550390280252224193170
51~100mm1,050870750530410369328282248
101~200mm1,4001,1701,030745595536476409360
201~300mm1,9001,5501,3501,040840756672578509
301~450mm2,2001,8001,5601,210975877780671590
451~600mm2,7002,2501,9001,5901,3001,1701,040894787
受注生産品
F寸mm
27-134 13 1.4 36.9 3.77 47 3.95 0.7
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm710590490340245221196169149
21~50mm780650550390280252224193170
51~100mm1,050870750530410369328282248
101~200mm1,4001,1701,030745595536476409360
201~300mm1,9001,5501,3501,040840756672578509
301~450mm2,2001,8001,5601,210975877780671590
451~600mm2,7002,2501,9001,5901,3001,1701,040894787
受注生産品
F寸mm
27-135 13 1.6 53.3 5.44 32 7.75 1.42
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm710590490340245221196169149
21~50mm780650550390280252224193170
51~100mm1,050870750530410369328282248
101~200mm1,4001,1701,030745595536476409360
201~300mm1,9001,5501,3501,040840756672578509
301~450mm2,2001,8001,5601,210975877780671590
451~600mm2,7002,2501,9001,5901,3001,1701,040894787
受注生産品
F寸mm
27-142 14 1.2 26.6 2.71 104 2.06 0.24
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm710590490340245221196169149
21~50mm780650550390280252224193170
51~100mm1,050870750530410369328282248
101~200mm1,4001,1701,030745595536476409360
201~300mm1,9001,5501,3501,040840756672578509
301~450mm2,2001,8001,5601,210975877780671590
451~600mm2,7002,2501,9001,5901,3001,1701,040894787
受注生産品
F寸mm
27-143 14 1.4 41.1 4.19 69 3.82 0.54
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm710590490340245221196169149
21~50mm780650550390280252224193170
51~100mm1,050870750530410369328282248
101~200mm1,4001,1701,030745595536476409360
201~300mm1,9001,5501,3501,040840756672578509
301~450mm2,2001,8001,5601,210975877780671590
451~600mm2,7002,2501,9001,5901,3001,1701,040894787
受注生産品
F寸mm
27-144 14 1.6 58.7 5.99 47 6.66 1.11
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm710590490340245221196169149
21~50mm780650550390280252224193170
51~100mm1,050870750530410369328282248
101~200mm1,4001,1701,030745595536476409360
201~300mm1,9001,5501,3501,040840756672578509
301~450mm2,2001,8001,5601,210975877780671590
451~600mm2,7002,2501,9001,5901,3001,1701,040894787
受注生産品
F寸mm
27-145 14 1.8 81.3 8.29 34 10.6 2.1
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm740620520360255230204175154
21~50mm780650550390280252224193170
51~100mm1,100940820580440396352303267
101~200mm1,5001,2501,100800640576512440387
201~300mm2,0001,6501,4401,120900810720619545
301~450mm2,3001,9501,6801,3001,050945840722635
451~600mm2,9002,4002,0501,7101,4001,2601,120963847
受注生産品
F寸mm
27-152 15 1.2 21.8 2.22 106 1.5 0.19
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm710590490340245221196169149
21~50mm780650550390280252224193170
51~100mm1,050870750530410369328282248
101~200mm1,4001,1701,030745595536476409360
201~300mm1,9001,5501,3501,040840756672578509
301~450mm2,2001,8001,5601,210975877780671590
451~600mm2,7002,2501,9001,5901,3001,1701,040894787
受注生産品
F寸mm
27-153 15 1.4 33.4 3.41 70 3.03 0.43
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm740620520360255230204175154
21~50mm780650550390280252224193170
51~100mm1,100940820580440396352303267
101~200mm1,5001,2501,100800640576512440387
201~300mm2,0001,6501,4401,120900810720619545
301~450mm2,3001,9501,6801,3001,050945840722635
451~600mm2,9002,4002,0501,7101,4001,2601,120963847
受注生産品
F寸mm
27-154 15 1.6 46.8 4.78 48 4.74 0.88
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm740620520360255230204175154
21~50mm780650550390280252224193170
51~100mm1,100940820580440396352303267
101~200mm1,5001,2501,100800640576512440387
201~300mm2,0001,6501,4401,120900810720619545
301~450mm2,3001,9501,6801,3001,050945840722635
451~600mm2,9002,4002,0501,7101,4001,2601,120963847
受注生産品
F寸mm
27-155 15 1.8 68.4 6.98 35 9.25 1.69
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm740620520360255230204175154
21~50mm830690600415305275244210185
51~100mm1,2001,020890630480432384330290
101~200mm1,6001,3501,190865690621552475418
201~300mm2,2001,8001,5601,210975877780671590
301~450mm2,4002,0001,7501,4101,1401,026912784690
451~600mm3,1002,6002,2001,8501,5101,3591,2081,039914
受注生産品
F寸mm
27-162 16 1.4 36.2 3.69 96 3.04 0.35
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm740620520360255230204175154
21~50mm780650550390280252224193170
51~100mm1,100940820580440396352303267
101~200mm1,5001,2501,100800640576512440387
201~300mm2,0001,6501,4401,120900810720619545
301~450mm2,3001,9501,6801,3001,050945840722635
451~600mm2,9002,4002,0501,7101,4001,2601,120963847
受注生産品
F寸mm
27-163 16 1.6 51.9 5.29 66 5.1 0.71
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm740620520360255230204175154
21~50mm780650550390280252224193170
51~100mm1,100940820580440396352303267
101~200mm1,5001,2501,100800640576512440387
201~300mm2,0001,6501,4401,120900810720619545
301~450mm2,3001,9501,6801,3001,050945840722635
451~600mm2,9002,4002,0501,7101,4001,2601,120963847
受注生産品
F寸mm
27-164 16 1.8 71.8 7.32 48 8.33 1.33
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm740620520360255230204175154
21~50mm830690600415305275244210185
51~100mm1,2001,020890630480432384330290
101~200mm1,6001,3501,190865690621552475418
201~300mm2,2001,8001,5601,210975877780671590
301~450mm2,4002,0001,7501,4101,1401,026912784690
451~600mm3,1002,6002,2001,8501,5101,3591,2081,039914
受注生産品
F寸mm
27-165 16 2.0 94.1 9.60 34 12.6 2.37
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm740620520360255230204175154
21~50mm830690600415305275244210185
51~100mm1,2001,020890630480432384330290
101~200mm1,6001,3501,190865690621552475418
201~300mm2,2001,8001,5601,210975877780671590
301~450mm2,4002,0001,7501,4101,1401,026912784690
451~600mm3,1002,6002,2001,8501,5101,3591,2081,039914
受注生産品
F寸mm
27-172 17 1.4 30.1 3.07 97 2.21 0.29
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm740620520360255230204175154
21~50mm780650550390280252224193170
51~100mm1,100940820580440396352303267
101~200mm1,5001,2501,100800640576512440387
201~300mm2,0001,6501,4401,120900810720619545
301~450mm2,3001,9501,6801,3001,050945840722635
451~600mm2,9002,4002,0501,7101,4001,2601,120963847
受注生産品
F寸mm
27-173 17 1.6 42.7 4.36 67 4.03 0.58
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm740620520360255230204175154
21~50mm830690600415305275244210185
51~100mm1,2001,020890630480432384330290
101~200mm1,6001,3501,190865690621552475418
201~300mm2,2001,8001,5601,210975877780671590
301~450mm2,4002,0001,7501,4101,1401,026912784690
451~600mm3,1002,6002,2001,8501,5101,3591,2081,039914
受注生産品
F寸mm
27-174 17 1.8 61.0 6.22 49 6.74 1.11
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm780650550390280252224193170
21~50mm900750650450330297264227200
51~100mm1,3001,100960680520468416358315
101~200mm1,7001,4501,280930740666592509448
201~300mm2,3001,9501,6801,3001,050945840722635
301~450mm2,5002,1001,8001,4701,2001,080960826727
451~600mm3,3002,7502,4002,0001,6201,4581,2961,115981
受注生産品
F寸mm
27-175 17 2.0 80.2 8.18 35 10.9 1.98
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm780650550390280252224193170
21~50mm900750650450330297264227200
51~100mm1,3001,100960680520468416358315
101~200mm1,7001,4501,280930740666592509448
201~300mm2,3001,9501,6801,3001,050945840722635
301~450mm2,5002,1001,8001,4701,2001,080960826727
451~600mm3,3002,7502,4002,0001,6201,4581,2961,115981
受注生産品
F寸mm
27-182 18 1.6 46.4 4.73 88 4.02 0.48
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm740620520360255230204175154
21~50mm830690600415305275244210185
51~100mm1,2001,020890630480432384330290
101~200mm1,6001,3501,190865690621552475418
201~300mm2,2001,8001,5601,210975877780671590
301~450mm2,4002,0001,7501,4101,1401,026912784690
451~600mm3,1002,6002,2001,8501,5101,3591,2081,039914
受注生産品
F寸mm
27-183 18 1.8 64.4 6.57 64 6.47 0.9
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm780650550390280252224193170
21~50mm900750650450330297264227200
51~100mm1,3001,100960680520468416358315
101~200mm1,7001,4501,280930740666592509448
201~300mm2,3001,9501,6801,3001,050945840722635
301~450mm2,5002,1001,8001,4701,2001,080960826727
451~600mm3,3002,7502,4002,0001,6201,4581,2961,115981
受注生産品
F寸mm
27-184 18 2.0 84.5 8.62 47 10 1.59
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm780650550390280252224193170
21~50mm900750650450330297264227200
51~100mm1,3001,100960680520468416358315
101~200mm1,7001,4501,280930740666592509448
201~300mm2,3001,9501,6801,3001,050945840722635
301~450mm2,5002,1001,8001,4701,2001,080960826727
451~600mm3,3002,7502,4002,0001,6201,4581,2961,115981
受注生産品
F寸mm
27-185 18 2.3 124 12.6 31 18.7 3.4
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm780650550390280252224193170
21~50mm900750650450330297264227200
51~100mm1,3001,100960680520468416358315
101~200mm1,7001,4501,280930740666592509448
201~300mm2,3001,9501,6801,3001,050945840722635
301~450mm2,5002,1001,8001,4701,2001,080960826727
451~600mm3,3002,7502,4002,0001,6201,4581,2961,115981
受注生産品
F寸mm
27-202 20 1.8 58.2 5.93 84 5.1 0.63
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm780650550390280252224193170
21~50mm970810700485360324288248218
51~100mm1,4001,1601,020730560504448385339
101~200mm1,8001,5501,350990790711632544479
201~300mm2,4002,0001,7501,4101,1401,026912784690
301~450mm2,7002,2501,9001,5901,3001,1701,040894787
451~600mm3,4002,8502,5002,0501,7001,5301,3601,1701,030
受注生産品
F寸mm
27-203 20 2.0 76.4 7.79 61 7.94 1.11
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm780650550390280252224193170
21~50mm970810700485360324288248218
51~100mm1,4001,1601,020730560504448385339
101~200mm1,8001,5501,350990790711632544479
201~300mm2,4002,0001,7501,4101,1401,026912784690
301~450mm2,7002,2501,9001,5901,3001,1701,040894787
451~600mm3,4002,8502,5002,0501,7001,5301,3601,1701,030
受注生産品
F寸mm
27-204 20 2.3 113 11.5 41 15.2 2.37
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm780650550390280252224193170
21~50mm970810700485360324288248218
51~100mm1,4001,1601,020730560504448385339
101~200mm1,8001,5501,350990790711632544479
201~300mm2,4002,0001,7501,4101,1401,026912784690
301~450mm2,7002,2501,9001,5901,3001,1701,040894787
451~600mm3,4002,8502,5002,0501,7001,5301,3601,1701,030
受注生産品
F寸mm
27-205 20 2.6 156 15.9 29 23.6 4.64
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm830690600415305275244210185
21~50mm1,050870750530385347308265233
51~100mm1,4001,1701,030745595536476409360
101~200mm1,9001,5501,3501,040840756672578509
201~300mm2,5002,1001,8001,4701,2001,080960826727
301~450mm2,9002,4002,0501,7101,4001,2601,120963847
451~600mm3,7003,0502,6502,2001,8201,6381,4561,2811,127
受注生産品
F寸mm
27-222 22 2.0 68.6 7.00 75 7.35 0.81
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm900750650450330297264227200
21~50mm1,050870750530410369328282248
51~100mm1,5001,2501,100800640576512440387
101~200mm2,0001,6501,4401,120900810720619545
201~300mm2,7002,2501,9001,5901,3001,1701,040894787
301~450mm3,1002,6002,2001,8501,5101,3591,2081,039914
451~600mm4,0003,3002,9002,4001,9801,7821,5841,3941,227
受注生産品
F寸mm
27-223 22 2.3 103 10.5 53 11.8 1.72
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~20mm900750650450330297264227200
21~50mm1,050870750530410369328282248
51~100mm1,5001,2501,100800640576512440387
101~200mm2,0001,6501,4401,120900810720619545
201~300mm2,7002,2501,9001,5901,3001,1701,040894787
301~450mm3,1002,6002,2001,8501,5101,3591,2081,039914
451~600mm4,0003,3002,9002,4001,9801,7821,5841,3941,227
受注生産品
F寸mm
27-224 22 2.6 142 14.5 37 19.6 3.35
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,100940820580440396352303267
51~100mm1,5001,2501,100800640576512440387
101~200mm2,0001,6501,4401,120900810720619545
201~300mm2,7002,2501,9001,5901,3001,1701,040894787
301~450mm3,1002,6002,2001,8501,5101,3591,2081,039914
451~600mm4,0003,3002,9002,4001,9801,7821,5841,3941,227
受注生産品
F寸mm
27-225 22 2.9 196 20.0 27 33.3 6.09
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,100940820580440396352303267
51~100mm1,5001,2501,100800640576512440387
101~200mm2,0001,6501,4401,120900810720619545
201~300mm2,7002,2501,9001,5901,3001,1701,040894787
301~450mm3,1002,6002,2001,8501,5101,3591,2081,039914
451~600mm4,0003,3002,9002,4001,9801,7821,5841,3941,227
受注生産品
F寸mm
27-252 25 2.3 91.1 9.29 72 9.8 1.12
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,100940820580440396352303267
51~100mm1,5001,2501,100800640576512440387
101~200mm2,0001,6501,4401,120900810720619545
201~300mm2,7002,2501,9001,5901,3001,1701,040894787
301~450mm3,1002,6002,2001,8501,5101,3591,2081,039914
451~600mm4,0003,3002,9002,4001,9801,7821,5841,3941,227
受注生産品
F寸mm
27-253 25 2.6 125 12.8 50 15.7 2.17
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,2001,020890630480432384330290
51~100mm1,6001,3501,190865690621552475418
101~200mm2,2001,8001,5601,210975877780671590
201~300mm2,9002,4002,0501,7101,4001,2601,120963847
301~450mm3,3002,7502,4002,0001,6201,4581,2961,115981
451~600mm4,3003,5503,1002,5502,1001,8901,6801,4781,301
受注生産品
F寸mm
27-254 25 2.9 173 17.6 38 22.5 3.93
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,2001,020890630480432384330290
51~100mm1,6001,3501,190865690621552475418
101~200mm2,2001,8001,5601,210975877780671590
201~300mm2,9002,4002,0501,7101,4001,2601,120963847
301~450mm3,3002,7502,4002,0001,6201,4581,2961,115981
451~600mm4,3003,5503,1002,5502,1001,8901,6801,4781,301
受注生産品
F寸mm
27-255 25 3.2 225 22.9 28 34.3 6.75
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,2001,020890630480432384330290
51~100mm1,6001,3501,190865690621552475418
101~200mm2,2001,8001,5601,210975877780671590
201~300mm2,9002,4002,0501,7101,4001,2601,120963847
301~450mm3,3002,7502,4002,0001,6201,4581,2961,115981
451~600mm4,3003,5503,1002,5502,1001,8901,6801,4781,301
受注生産品
F寸mm
27-282 28 2.6 115 11.7 69 12.7 1.49
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,2001,020890630480432384330290
51~100mm1,6001,3501,190865690621552475418
101~200mm2,2001,8001,5601,210975877780671590
201~300mm3,1002,6002,2001,8501,5101,3591,2081,039914
301~450mm3,3002,7502,4002,0001,6201,4581,2961,115981
451~600mm4,3003,5503,1002,5502,1001,8901,6801,4781,301
受注生産品
F寸mm
27-283 28 2.9 155 15.8 51 17.6 2.69
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,2001,020890630480432384330290
51~100mm1,6001,3501,190865690621552475418
101~200mm2,2001,8001,5601,210975877780671590
201~300mm3,1002,6002,2001,8501,5101,3591,2081,039914
301~450mm3,3002,7502,4002,0001,6201,4581,2961,115981
451~600mm4,3003,5503,1002,5502,1001,8901,6801,4781,301
受注生産品
F寸mm
27-284 28 3.2 206 21.0 39 27.4 4.58
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,2001,020890630480432384330290
51~100mm1,6001,3501,190865690621552475418
101~200mm2,2001,8001,5601,210975877780671590
201~300mm3,1002,6002,2001,8501,5101,3591,2081,039914
301~450mm3,3002,7502,4002,0001,6201,4581,2961,115981
451~600mm4,3003,5503,1002,5502,1001,8901,6801,4781,301
受注生産品
F寸mm
27-285 28 3.5 270 27.5 31 39.2 7.49
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,3001,100960680520468416358315
51~100mm1,7001,4501,280930740666592509448
101~200mm2,3001,9501,6801,3001,050945840722635
201~300mm3,3002,7502,4002,0001,6201,4581,2961,115981
301~450mm3,4002,8502,5002,0501,7001,5301,3601,1701,030
451~600mm4,6003,8503,3502,8002,3002,0701,8401,6191,425
受注生産品
F寸mm
27-322 32 2.9 138 14.1 71 15.7 1.72
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,3001,100960680520468416358315
51~100mm1,7001,4501,280930740666592509448
101~200mm2,3001,9501,6801,3001,050945840722635
201~300mm3,3002,7502,4002,0001,6201,4581,2961,115981
301~450mm3,4002,8502,5002,0501,7001,5301,3601,1701,030
451~600mm4,6003,8503,3502,8002,3002,0701,8401,6191,425
受注生産品
F寸mm
27-323 32 3.2 179 18.3 54 21.6 2.93
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,3001,100960680520468416358315
51~100mm1,7001,4501,280930740666592509448
101~200mm2,3001,9501,6801,3001,050945840722635
201~300mm3,3002,7502,4002,0001,6201,4581,2961,115981
301~450mm3,4002,8502,5002,0501,7001,5301,3601,1701,030
451~600mm4,6003,8503,3502,8002,3002,0701,8401,6191,425
受注生産品
F寸mm
27-324 32 3.5 235 24.0 43 28.4 4.76
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,4001,1601,020730560504448385339
51~100mm1,8001,5501,350990790711632544479
101~200mm2,4002,0001,7501,4101,1401,026912784690
201~300mm3,4002,8502,5002,0501,7001,5301,3601,1701,030
301~450mm3,7003,0502,6502,2001,8201,6381,4561,2811,127
451~600mm4,7003,9003,5002,8502,4002,1601,9201,6901,487
受注生産品
F寸mm
27-325 32 4.0 353 36.0 30 51.9 9.89
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,4001,1601,020730560504448385339
51~100mm1,8001,5501,350990790711632544479
101~200mm2,4002,0001,7501,4101,1401,026912784690
201~300mm3,4002,8502,5002,0501,7001,5301,3601,1701,030
301~450mm3,7003,0502,6502,2001,8201,6381,4561,2811,127
451~600mm4,7003,9003,5002,8502,4002,1601,9201,6901,487
受注生産品
F寸mm
27-362 36 3.2 164 16.7 74 16.7 1.98
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,4001,1601,020730560504448385339
51~100mm1,8001,5501,350990790711632544479
101~200mm2,4002,0001,7501,4101,1401,026912784690
201~300mm3,4002,8502,5002,0501,7001,5301,3601,1701,030
301~450mm3,7003,0502,6502,2001,8201,6381,4561,2811,127
451~600mm4,7003,9003,5002,8502,4002,1601,9201,6901,487
受注生産品
F寸mm
27-363 36 3.5 210 21.4 58 24.5 3.21
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,4001,1701,030745595536476409360
51~100mm1,9001,5501,3501,040840756672578509
101~200mm2,5002,1001,8001,4701,2001,080960826727
201~300mm3,7003,0502,6502,2001,8201,6381,4561,2811,127
301~450mm4,3003,5503,1002,5502,1001,8901,6801,4781,301
451~600mm5,5004,5504,1003,3502,8002,5202,3802,1661,971
受注生産品
F寸mm
27-364 36 4.0 314 32.0 41 41.2 6.62
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,4001,1701,030745595536476409360
51~100mm1,9001,5501,3501,040840756672578509
101~200mm2,5002,1001,8001,4701,2001,080960826727
201~300mm3,7003,0502,6502,2001,8201,6381,4561,2811,127
301~450mm4,3003,5503,1002,5502,1001,8901,6801,4781,301
451~600mm5,5004,5504,1003,3502,8002,5202,3802,1661,971
受注生産品
F寸mm
27-365 36 4.5 432 44.1 29 64.7 12.65
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,4001,1701,030745595536476409360
51~100mm1,9001,5501,3501,040840756672578509
101~200mm2,5002,1001,8001,4701,2001,080960826727
201~300mm3,7003,0502,6502,2001,8201,6381,4561,2811,127
301~450mm4,3003,5503,1002,5502,1001,8901,6801,4781,301
451~600mm5,5004,5504,1003,3502,8002,5202,3802,1661,971
受注生産品
F寸mm
27-402 40 3.5 192 19.6 75 21.6 2.26
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,6001,3501,190865690621552475418
51~100mm2,0001,6501,4401,120900810720619545
101~200mm2,7002,2501,9001,5901,3001,1701,040894787
201~300mm4,0003,3002,9002,4001,9801,7821,5841,3941,227
301~450mm4,6003,8503,3502,8002,3002,0701,8401,6191,425
451~600mm6,4005,3004,7503,9003,3002,9702,8052,5532,323
受注生産品
F寸mm
27-403 40 4.0 280 28.6 53 33.3 4.65
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,6001,3501,190865690621552475418
51~100mm2,0001,6501,4401,120900810720619545
101~200mm2,7002,2501,9001,5901,3001,1701,040894787
201~300mm4,0003,3002,9002,4001,9801,7821,5841,3941,227
301~450mm4,6003,8503,3502,8002,3002,0701,8401,6191,425
451~600mm6,4005,3004,7503,9003,3002,9702,8052,5532,323
受注生産品
F寸mm
27-404 40 4.5 393 40.1 38 57.8 8.84
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,7001,4501,280930740666592509448
51~100mm2,2001,8001,5601,210975877780671590
101~200mm2,9002,4002,0501,7101,4001,2601,120963847
201~300mm4,3003,5503,1002,5502,1001,8901,6801,4781,301
301~450mm5,2004,3003,8503,1502,6502,3852,2522,0491,865
451~600mm7,5006,3005,8004,7504,0503,6453,4423,1322,850
受注生産品
F寸mm
27-405 40 5.0 529 53.9 28 80.4 15.79
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,7001,4501,280930740666592509448
51~100mm2,2001,8001,5601,210975877780671590
101~200mm2,9002,4002,0501,7101,4001,2601,120963847
201~300mm4,3003,5503,1002,5502,1001,8901,6801,4781,301
301~450mm5,2004,3003,8503,1502,6502,3852,2522,0491,865
451~600mm7,5006,3005,8004,7504,0503,6453,4423,1322,850
受注生産品
F寸mm
27-504 50 5.0 429 43.8 51 51.9 7.43
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,8001,5501,350990790711632544479
51~100mm2,3001,9501,6801,3001,050945840722635
101~200mm3,1002,6002,2001,8501,5101,3591,2081,039914
201~300mm4,6003,8503,3502,8002,3002,0701,8401,6191,425
301~450mm5,9004,9504,4003,6503,0502,7452,5922,3592,146
451~600mm8,0006,8006,3005,1004,3503,9153,6973,3643,061
受注生産品
F寸mm
27-505 50 6.0 686 70.0 28 110 20.23
長さ/個数1~23~45~910~1920~4950~99100~199200~299300~399
10~50mm1,8001,5501,350990790711632544479
51~100mm2,3001,9501,6801,3001,050945840722635
101~200mm3,1002,6002,2001,8501,5101,3591,2081,039914
201~300mm4,6003,8503,3502,8002,3002,0701,8401,6191,425
301~450mm5,9004,9504,4003,6503,0502,7452,5922,3592,146
451~600mm8,0006,8006,3005,1004,3503,9153,6973,3643,061
受注生産品
F寸mm
